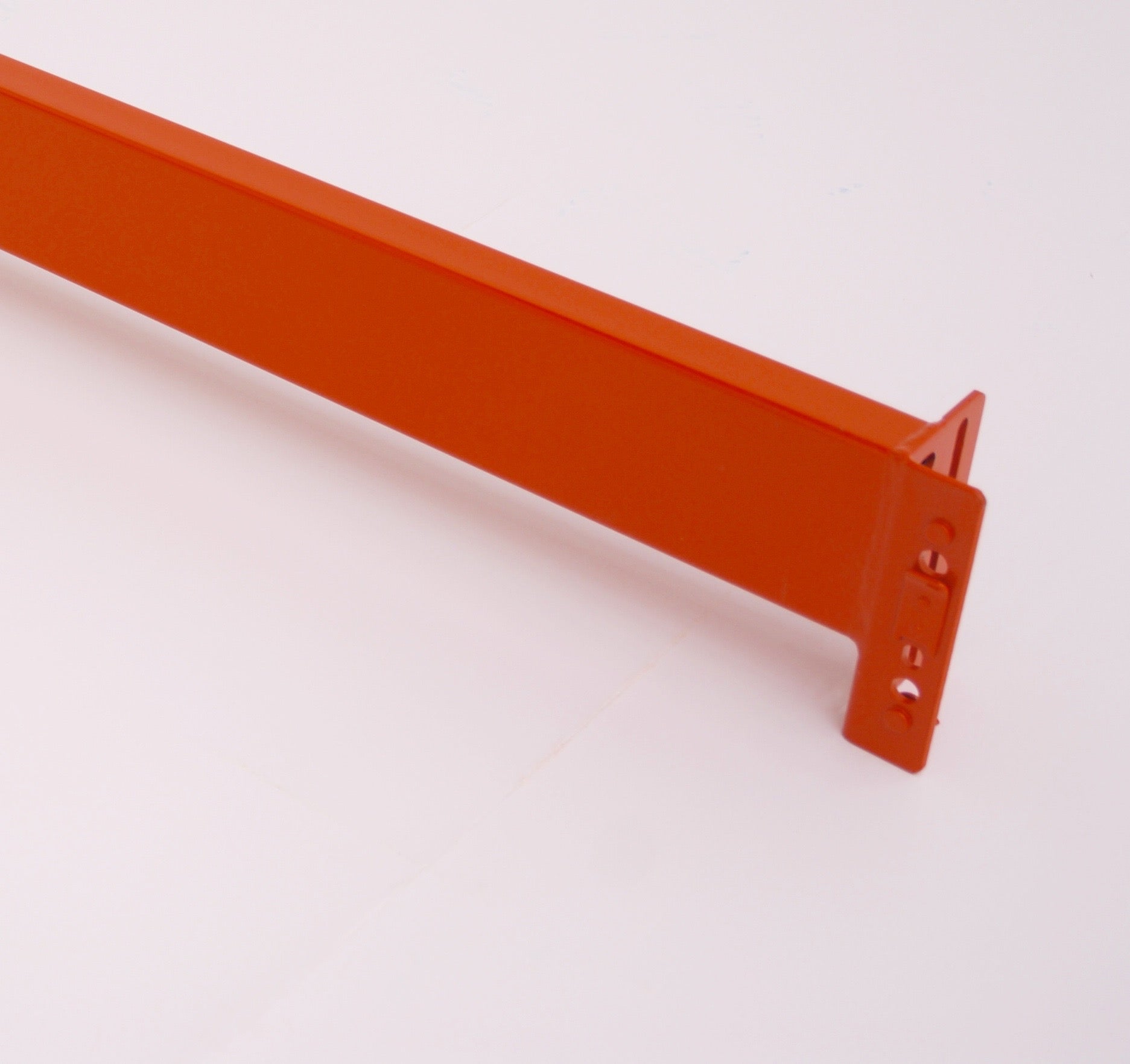

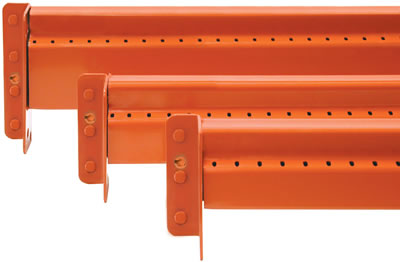

Beams - Tears Drop, Call for Pricing (704) 342-3637
Beams - Tears Drop, Call for Pricing (704) 342-3637
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Couldn't load pickup availability
-
Constructed using only prime, US made high strength steel.
- Painted using environmentally safe high quality, high visibility polyurethane paint.
- Maximum craftsmanship - Tolerances within 7/1000 inch.

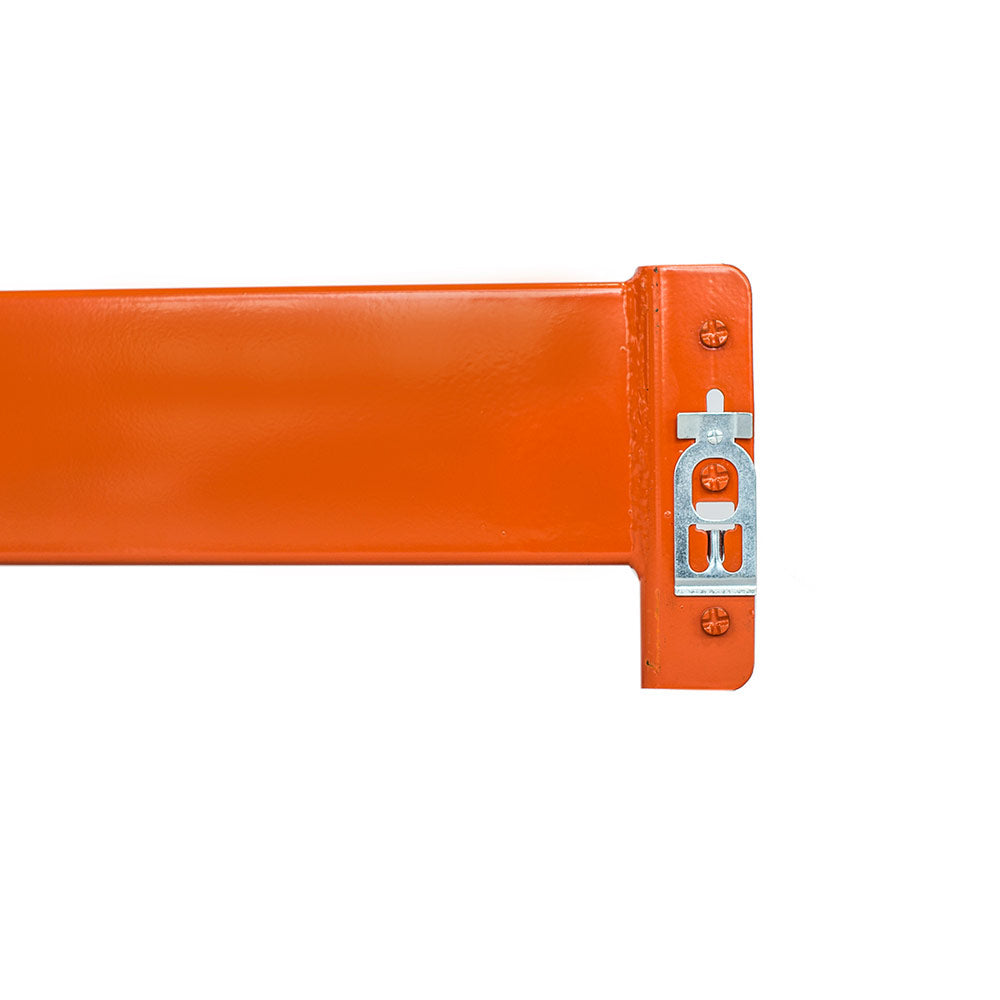

- Universal teardrop style connectors can be interchanged with any standard teardrop racking

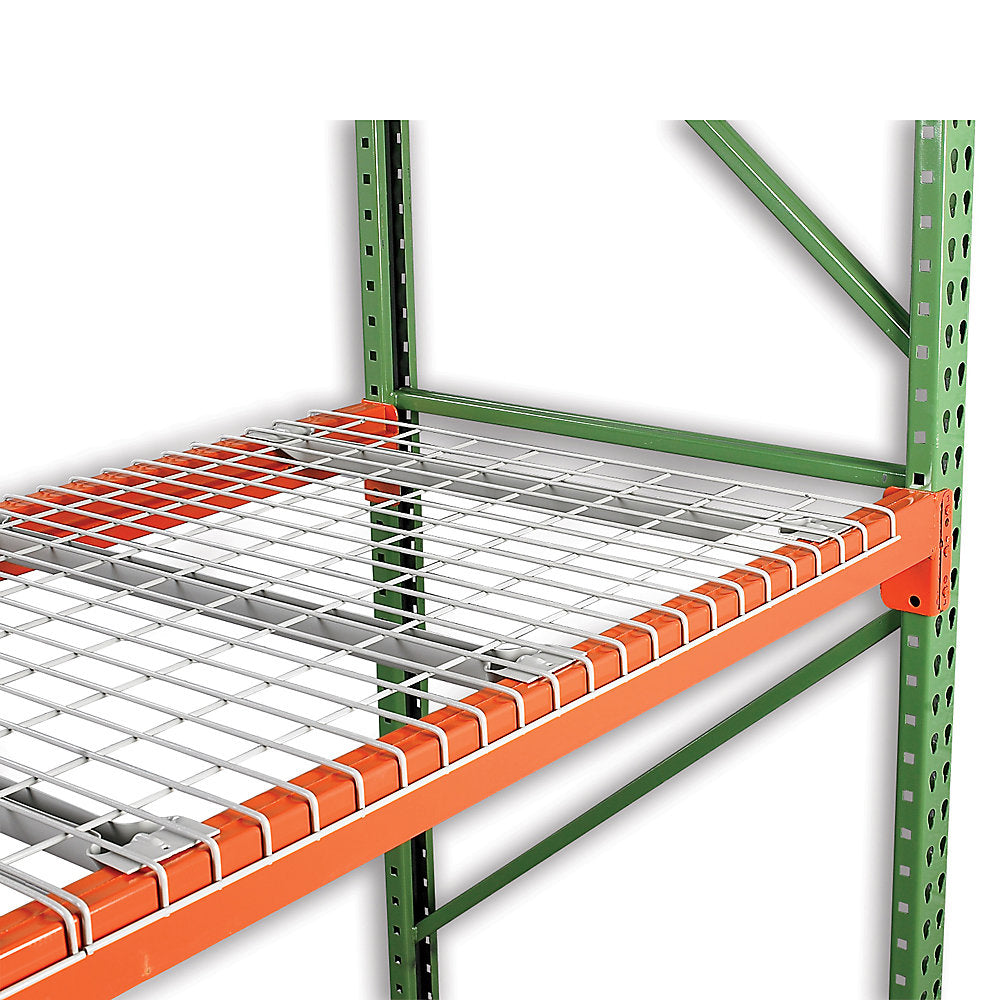

- Ease of assembly and rack adjustability are the design advantages that boltless Tear Drop Pallet Rack Systems offer. 100% selective Tear Drop pallet rack systems allow access to every pallet. This storage rack design is economical, efficient and adaptable.Ease of assembly and rack adjustability are the design advantages that boltless Tear Drop Pallet Rack Systems offer. 100% selective Tear Drop pallet rack systems allow access to every pallet. This storage rack design is economical, efficient and adaptable.
- Beam capacities up to 20,000 lbs with lengths from 44" to 168"
- Upright frame heights from 6 to 46 ft, unspliced.
- Upright frame depths from 24 to 72 inches.
- Special capacities and sizes as well as modifications for seismic rated pallet rack are available on request.
- Double post and reinforced frames are available for special applications.
- All capacities shown are in Lbs.
- Beam capacities are for uniformly distributed loads.
- Beams over 116" length should be tied across the middle to prevent beam spread.
- Beams over 90" length that support loose deck, should be tied across the middle to prevent beam spread.
- Please call Factory for any Beam spacing on a Frame greater than 96".
- Values shown reflect the capacity of the Beams based on the lesser of its strength in bending or L/180 deflection criteria.
- Greyed out capacities in the top right hand corner of the chart, exceed the safe capacity of the connectors.
