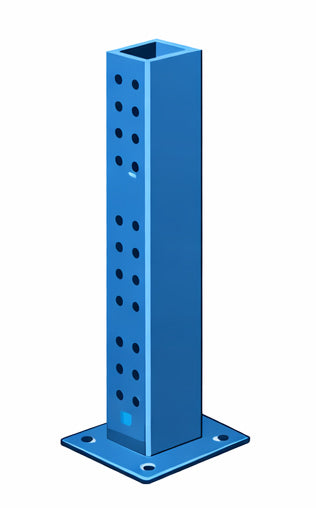

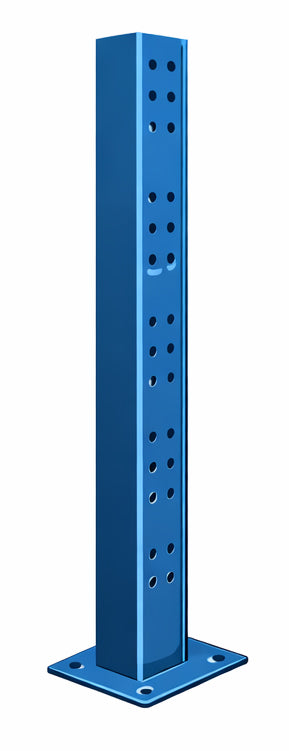

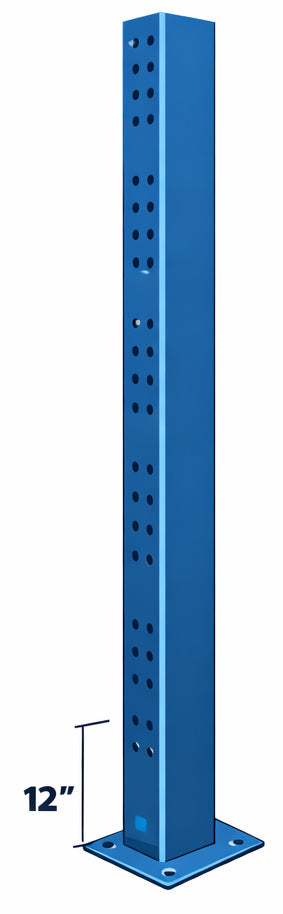

Heavy-Duty Cantilever Columns

Heavy-Duty Cantilever Columns

Build a robust storage solution with our industrial-grade cantilever columns, designed to anchor your material handling system with exceptional strength and stability. These professional uprights form the backbone of efficient cantilever racking systems.

Key Features

Exceptional Load Capacity - Supporting between 11,440 to 11,704 lbs per side, these columns provide the structural foundation needed for heavy-duty industrial storage applications.

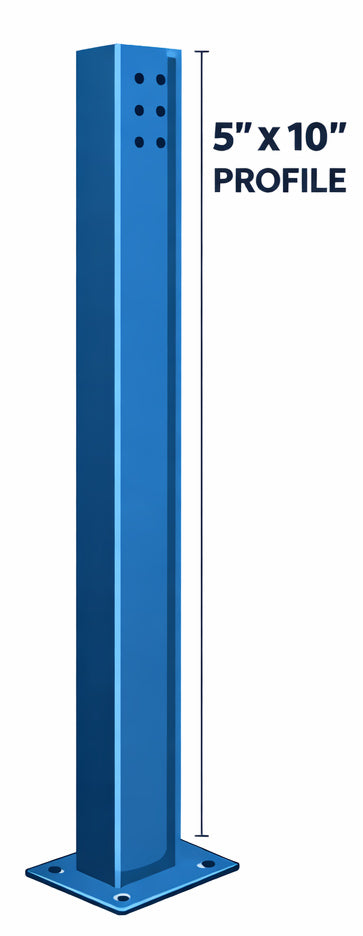

Robust 5" x 10" Profile - The substantial steel profile delivers superior strength and rigidity, ensuring your racking system remains stable and secure even under maximum loads.

Professional Blue Finish - The durable blue powder coat finish provides excellent corrosion resistance while creating clear visual distinction between columns and arms in your storage system.

Available Heights

Select the height that matches your facility requirements:

• 12' Columns - 11,704 lbs/side capacity (209.00 lbs)
• 16' Columns - 11,660 lbs/side capacity (279.40 lbs)
• 20' Columns - 11,440 lbs/side capacity (349.80 lbs)

System Benefits

When paired with cantilever arms, these columns create a versatile storage solution that:

• Eliminates front columns for easy loading and unloading
• Accommodates materials of varying lengths
• Provides quick access from either side
• Maximizes vertical storage space
• Adjusts easily to changing inventory needs

Ideal For

• Lumber yards and building supply warehouses
• Metal fabrication and distribution facilities
• Furniture stores and manufacturing plants
• Plumbing and electrical supply operations
• Any facility handling long, bulky materials

Engineered for durability and designed for performance, these cantilever columns provide the reliable foundation your material storage system demands.

Height	Profile	Capacity	Color	Weight
12'	5" x 10"	11,704 Lbs/Side	Blue	209.00 Lbs
16'	5" x 10"	11,660 Lbs/Side	Blue	279.40 Lbs
20'	5" x 10"	11,440 Lbs/Side	Blue	349.80 Lbs
